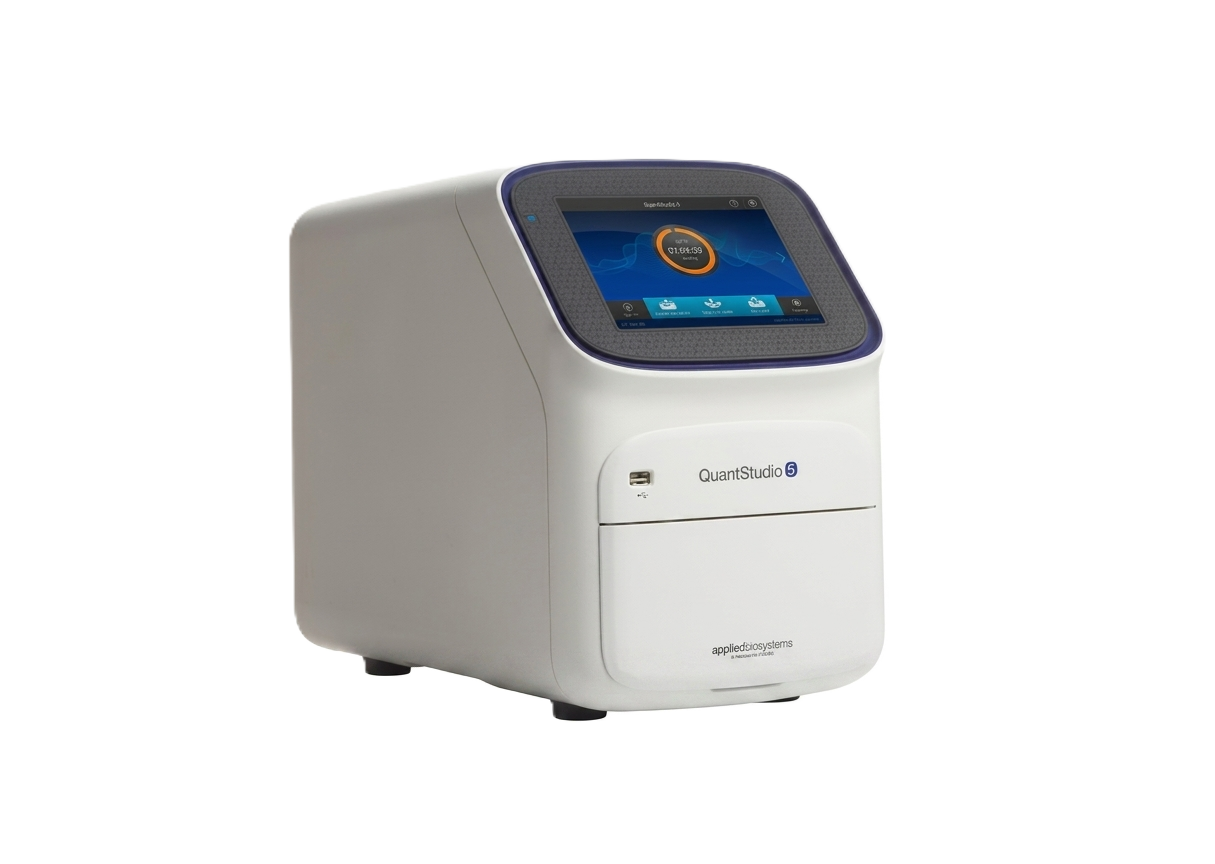

QuantStudio 5 Real-Time PCR System

QuantStudio 5 Real-Time PCR System
Image courtesy of Thermo Fisher Scientific

96-well real-time PCR system with 6 VeriFlex zones and OptiFlex technology for fast, flexible qPCR.

Request Quote

Overview

The QuantStudio 5 Real-Time PCR System delivers fast, accurate results with a compact footprint. It features 6 independent VeriFlex temperature zones for precise optimization, OptiFlex technology with 6 decoupled filters for multiplexing up to 6 targets, and an intuitive 8.5" touchscreen. Ideal for gene expression, genotyping, and pathogen detection applications.

Specifications

Sample Capacity 96-well 0.2 mL block
Reaction Volume 10–100 μL
Multiplexing Up to 6 targets / 6-plex
Excitation Source Bright white LED with OptiFlex technology
Detection Channels 6 decoupled filters, CMOS camera
Excitation/Detection Range 450–680 nm / 500–730 nm
Max Block Ramp Rate 6.5°C/sec
Average Sample Ramp Rate 3.66°C/sec
Temperature Range 4°C to 99.9°C
Temperature Uniformity 0.4°C
VeriFlex Zones 6 zones with 5°C zone-to-zone differential
Display 8.5" Color Touchscreen
Memory 10 GB on-board for 2,000–5,000 runs
Connectivity USB, Ethernet, Cloud via Thermo Fisher Connect
Dimensions 40 x 27 x 50 cm (H x W x D)
Weight 27 kg
Downstream Molecular Validation

Molecular Readout
Systems

Luminescence, fluorescence, and post-PCR molecular interpretation for integrated amplification workflows.

Explore GloMax
Promega GloMax Detection Systems

Complete Your Workflow

Optimized consumables and reagents for QuantStudio 5 Real-Time PCR System

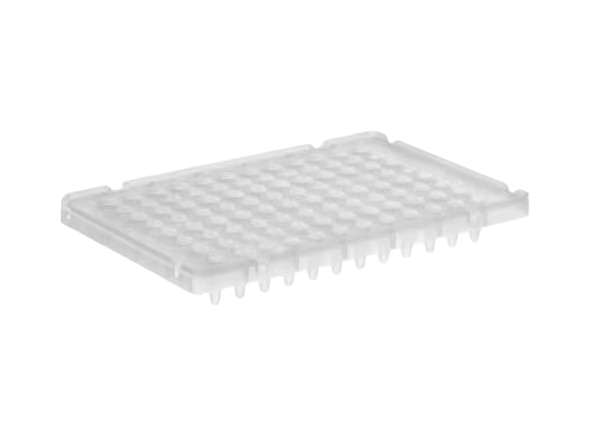

MicroAmp Fast 96-Well Reaction Plate
Plates & Seals

MicroAmp Fast 96-Well Reaction Plate

SKU: 4346907 Request Quote →
MicroAmp Optical Adhesive Film
Plates & Seals

MicroAmp Optical Adhesive Film

SKU: 4311971 Request Quote →
MicroAmp Optical 8-Tube Strip
Plates & Seals

MicroAmp Optical 8-Tube Strip

SKU: 4316567 Request Quote →
PowerUp SYBR Green Master Mix
qPCR Reagents

PowerUp SYBR Green Master Mix

SKU: A25742 Request Quote →
TaqPath 1-Step RT-qPCR Master Mix
qPCR Reagents

TaqPath 1-Step RT-qPCR Master Mix

SKU: A15299 Request Quote →
